Inventory Racking Systems offer structured solutions for warehouses. They maximize space and improve organization. Many facilities see up to 60% more storage compared to traditional shelving.
- Drive-in pallet racks can increase capacity by 75%.
- Selective Pallet Rack and Teardrop Pallet Rack help streamline inventory access.
Racking Systems boost efficiency and safety.
Key Takeaways
- Inventory racking systems can increase storage capacity by up to 75%, maximizing space and improving organization in warehouses.
- Choosing the right racking system depends on factors like inventory characteristics, budget, and safety compliance, ensuring efficient operations.
- Regular inspections and adherence to safety standards are crucial for preventing accidents and maintaining a safe work environment.
Types of Inventory Racking Systems

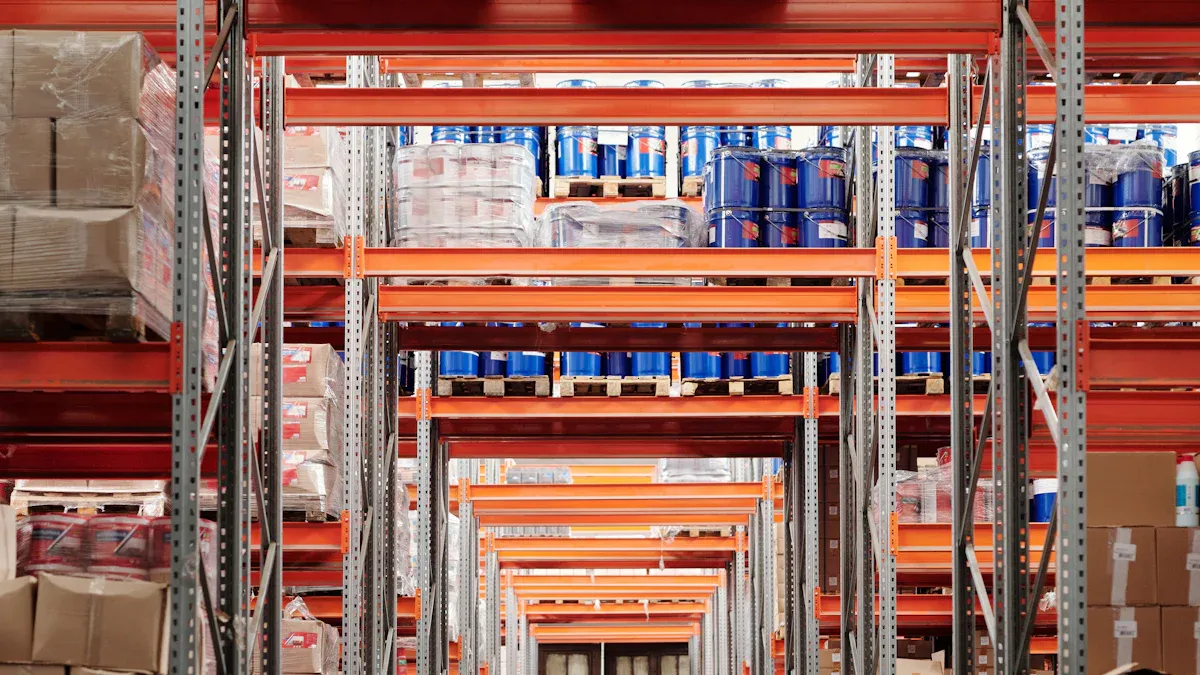

Selective Pallet Racking
Selective pallet racking stands as the most common solution in inventory Racking Systems. This system allows direct access to every pallet, which supports efficient stock management and rotation. Facilities benefit from operational flexibility and cost efficiency. However, selective racks require wider aisles, which can reduce overall storage density.
Tip: Selective pallet racking works best for warehouses that need high accessibility and frequent stock rotation.
| Advantages | Disadvantages |
|---|---|
| High accessibility | Lower space utilization |
| Operational flexibility | Structural vulnerabilities |
| Cost efficiency | Requires wider aisles |
Drive-In and Drive-Through Racking
Drive-in and drive-through racking maximize storage density by eliminating fixed aisles. Forklifts can enter the rack structure, making these systems ideal for high-density storage in limited spaces. Drive-through racking offers dual access, which increases flexibility and allows for simultaneous loading and unloading. This design enhances productivity and reduces operational costs.
Push Back Racking
Push back racking uses a dynamic system where pallets are loaded from one side and pushed back to make room for new pallets. This system suits medium-turnover palletized goods, fast-moving consumer products, and items managed with the LIFO method. Warehouses with few SKUs and multiple pallets per SKU often choose this option.
Pallet Flow Racking
Pallet flow racking uses gravity-driven rails to move pallets from the back to the front. This design supports the First-In, First-Out (FIFO) principle, which helps minimize waste and spoilage. The system improves space utilization and reduces handling time, making it a strong choice for facilities that require efficient inventory rotation.
Cantilever Racking
Cantilever racking provides efficient storage for long or bulky items. Industries such as construction, manufacturing, and furniture distribution rely on this system for storing lumber, steel beams, pipes, and large furniture. The arms extend from a vertical structure, maximizing vertical space and supporting heavy loads.
Mobile Racking
Mobile racking systems mount racks on movable bases. By eliminating fixed aisles, these systems significantly increase storage density. Facilities can utilize every inch of space, which leads to reduced operating times and lower energy costs. Mobile racking also enhances product security and lowers facility square footage requirements.
Multi-Tier Racking
Multi-tier racking systems optimize vertical space in warehouses with high ceilings. These systems can double or triple storage capacity by converting unused overhead space into functional storage. Multi-tier racking helps businesses maximize their inventory Racking Systems without expanding their warehouse footprint.
Benefits of Inventory Racking Systems
Maximizing Storage Space
Inventory Racking Systems help facilities use every inch of available space. Drive-in racking systems can increase storage capacity by up to 75% compared to traditional methods. Vertical storage, customizable components, and tear drop frames all contribute to higher storage density. Facilities can double or triple their storage volume by utilizing air space and adapting racks to changing needs.
| Design Feature | Contribution to Storage Space |
|---|---|
| Vertical Storage | Doubles or triples storage volume by utilizing air space. |
| Customizable Components | Adapts to changing storage needs for optimal use. |
| Tear Drop Frames | Enhances structural integrity and safety. |
| Step Beams | Facilitates easy access and organization of pallets. |
| Wire Mesh Decking | Provides support and visibility for stored items. |
| Rack Protectors | Increases safety and longevity of the racking system. |
Improving Organization and Accessibility
Well-designed racking layouts keep products organized and easy to reach. Employees can locate items quickly, which speeds up the order picking process and reduces downtime. Organized layouts support smooth operations and timely inventory retrieval.
| Benefit | Impact on Order Fulfillment Speed |
|---|---|
| Easy access to stored goods | Enables quick retrieval, reducing time spent on picking. |
| Minimized downtime | Increases operational efficiency, leading to faster processing. |
| Organized layouts | Supports smooth operations and timely inventory retrieval. |
A well-organized racking system leads to faster order processing and higher customer satisfaction.
Enhancing Inventory Management
Modern racking systems often integrate advanced technologies. Warehouse Management Systems (WMS), automated storage and retrieval systems, and IoT sensors all improve tracking and control. These tools provide real-time visibility into inventory, reduce errors, and support agile operations.
| Technology | Description |
|---|---|
| Advanced Software | Real-time visibility into inventory location and quantity. |
| Warehouse Management Systems (WMS) | Optimizes warehouse operations, including inventory tracking. |
| Automated Storage and Retrieval Systems (AS/RS) | Robotics increase efficiency and storage density. |
| IoT Sensors | Monitor environmental conditions to reduce spoilage and damage risks. |
Supporting Safety and Compliance
Safety remains a top priority in any warehouse. Compliance with OSHA standards is mandatory for all racking systems in the United States. Non-compliance can result in fines ranging from $5,000 to $161,000. Properly installed racks, regular inspections, and the use of rack protectors help prevent accidents and ensure a safe work environment.
| Standard | Description |
|---|---|
| 1926.250 | Requires stable storage to avoid hazards and collapse. |
| OSHA General Duty Clause | Mandates a workplace free from recognized hazards. |
Facilities that follow safety standards protect employees and avoid costly penalties.
Choosing and Using the Right Inventory Racking Systems
Assessing Your Inventory Needs
Every warehouse has unique requirements. Managers must evaluate several factors before selecting a racking system. The following table outlines the most important considerations:
| Factor | Description |
|---|---|
| Usable Space | Consider the dimensions of the space to optimize layout and maximize vertical space usage. |
| Inventory Characteristics | Evaluate weight, dimensions, size, and shape of products to determine suitable racking systems. |
| Budget Constraints | Assess initial and long-term costs, including maintenance and potential reconfiguration expenses. |
| Accessibility | Ensure compatibility with forklifts and material handling equipment for efficient operations. |
| Safety and Compliance | Design for safety, ensuring stability and adherence to local regulations and safety standards. |
Managers should also forecast future inventory requirements. They can achieve this by:
- Gathering previous sales data, ideally over six months to two years.
- Analyzing historical demand to forecast future needs.
- Identifying seasonal trends and other influencing factors.
- Ensuring demand planning considers fulfillment and shipping locations.
Accurate forecasting helps prevent overstocking or stockouts. Clean, timely, and organized data supports better decision-making. Real-time inventory tracking allows quick adjustments based on current trends.
Key Factors in System Selection
Selecting the right racking system involves more than just evaluating space. High-volume distribution centers often consider the following criteria:
- Product and Material Flow
- Warehouse Layout
- Pallet Characteristics (Weight & Dimensions)
- Budget
- Safety
- Accessibility
- Versatility
Cost, durability, and scalability also play a significant role. For example:
- Selective racking offers a cost-effective solution for businesses with tight budgets.
- Used pallet racks can provide savings without sacrificing storage volume or access.
- Durability becomes crucial when storing heavy items or operating in high-traffic environments.
Durability should be a key factor when optimizing storage for heavy items. In high-traffic warehouse settings, racking systems must hold up to heavy use. Supposedly affordable solutions won’t feel like such a good deal if they’re clearly prone to damage.
Managers should match the racking system to the characteristics of their inventory and the physical layout of the warehouse. Accessibility for quick and efficient operations remains essential.
Best Practices for Installation and Safety
Proper installation and ongoing safety protocols protect both employees and inventory. Recommended practices include:
- Ensure proper installation and anchoring of racks.
- Comply with load capacity limits to prevent collapses.
- Conduct routine inspections to identify potential issues.
- Install safety tools such as guardrails and column protectors.
The following table summarizes key safety standards:
| Standard | Description |
|---|---|
| OSHA 1910.176(b) | Requires secure storage to prevent tipping or collapsing. |
| ANSI MH16.1 | Outlines load capacities and design requirements for racking systems. |
| RMI Guidelines | Recommend best practices for installation and maintenance. |
Inspection frequency depends on warehouse risk level:
- Annual Inspections: Suitable for low-risk warehouses with stable conditions.
- Quarterly Inspections: Recommended for medium-risk warehouses with variable loads.
- Monthly Inspections: Necessary for high-risk, high-traffic environments.
Regular inspections and adherence to safety standards reduce the risk of accidents and ensure compliance with regulations.
Tips for Ongoing Optimization
Continuous improvement keeps inventory Racking Systems efficient and safe. Managers can use the following strategies:
- Review and Refine: Regularly check system performance and adjust based on feedback.
- Automation: Implement automated systems to reduce manual tasks and improve visibility.
- AI and Machine Learning: Use advanced technologies for demand forecasting and identifying inefficiencies.
- Data Analytics: Analyze picking patterns and inventory movement to optimize layout. For example, placing high-demand items closer to the shipping area can reduce picking times and boost efficiency.
- Centralized Management: Use software to manage inventory across multiple locations.
- Contingency Planning: Prepare for supply chain disruptions with predictive analytics and flexible processes.
As Don White, Senior Director of Solutions Engineering for Da Vinci, explains: ‘If I can see how long it took him to walk between locations, for instance, I can change the slotting of items to decrease that walk time. If I save 2 minutes picking 20 orders in an operation, if 10 people are picking 500 orders a day and I’m saving them two minutes every 20 orders and I’m doing that over 365 days a year, now I don’t need as many people to pick.’
According to a study by the Warehousing Education and Research Council (WERC), warehouses that use data analytics for layout optimization experience a 25% increase in picking efficiency.
Tip: Regularly review racking system performance and leverage technology to maintain a competitive edge.
Warehouse managers achieve long-term success by selecting the right racking system and tracking key metrics like inventory turnover and space utilization. Regular evaluations improve safety, efficiency, and employee morale.
| Benefit | Description |
|---|---|
| Improved Safety | Modern racking reduces risks and supports compliance. |
| Enhanced Efficiency | Upgrades streamline operations and support business growth. |
| Cost Savings | Better organization lowers labor and operational expenses. |
Companies that invest in ongoing optimization see gains in control, accuracy, and productivity.
FAQ
What is the best racking system for small warehouses?
Selective pallet racking often works best for small warehouses. It provides high accessibility and adapts easily to changing inventory needs.
How often should warehouse managers inspect racking systems?
Warehouse managers should inspect racking systems at least once every quarter. High-traffic facilities may require monthly inspections for optimal safety.
Can inventory racking systems support automation?
- Yes, many modern racking systems integrate with automated storage and retrieval systems (AS/RS).
- Automation increases efficiency and improves inventory accuracy.
